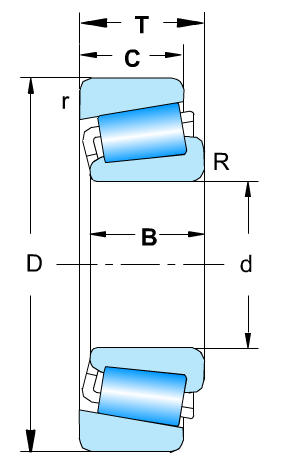

Part No. | Boundary Dimension (mm) | Mass | |||||||
---|---|---|---|---|---|---|---|---|---|
Cone | Cup | d | D | T | B | C | R | r | Kg |
32309 |   | 45 | 100 | 38.25 | 36 | 30 | 2 | 1.5 | 1.46 |
32310 |   | 50 | 110 | 42.25 | 40 | 33 | 2.5 | 2 | 1.92 |
32313 |   | 65 | 140 | 51 | 48 | 39 | 3 | 2.5 | 3.66 |
32314 |   | 70 | 150 | 54 | 51 | 42 | 3 | 2.5 | 4.46 |
30216 |   | 80 | 140 | 28.25 | 26 | 22 | 2.5 | 2 | 1.72 |
30218 |   | 90 | 160 | 32.5 | 30 | 26 | 2.5 | 2 | 2.66 |
30313 |   | 65 | 140 | 36 | 33 | 28 | 3 | 2.5 | 2.55 |
32214 |   | 70 | 125 | 33.25 | 31 | 27 | 2 | 1.5 | 1.68 |
32216 |   | 80 | 140 | 35.25 | 33 | 28 | 2.5 | 2 | 2.18 |
32218 |   | 90 | 160 | 42.6 | 40 | 34 | 2.5 | 2 | 3.49 |
32219 |   | 95 | 170 | 45.5 | 43 | 37 | 3 | 2.5 | 4.30 |
32220 |   | 100 | 180 | 49 | 46 | 39 | 3 | 2.5 | 5.12 |
33116 |   | 80 | 130 | 37 | 37 | 29 | 2.5 | 0.8 | 1.93 |
33118 |   | 90 | 150 | 45 | 45 | 35 | 3 | 1 | 3.13 |
33213 |   | 65 | 120 | 41 | 41 | 32 | 2 | 1.5 | 2.02 |
33215 |   | 75 | 130 | 41 | 41 | 31 | 2 | 1.5 | 2.20 |
33217 |   | 85 | 150 | 49 | 49 | 37 | 2.5 | 2 | 3.58 |
580 | 572 | 82.55 | 139.992 | 36.512 | 36.098 | 28.575 | 3.5 | 3.3 | 2.20 |
594A | 592A | 95.25 | 152.4 | 39.688 | 36.322 | 30.162 | 5 | 3.3 | 2.51 |
643 | 632 | 69.85 | 136.525 | 41.275 | 41.275 | 31.75 | 3.5 | 3.3 | 2.63 |
663 | 653 | 82.55 | 146.05 | 41.275 | 41.275 | 31.75 | 3.5 | 3.3 | 2.74 |
665 | 653 | 85.725 | 146.05 | 41.275 | 41.275 | 31.75 | 3.5 | 3.3 | 2.65 |
740 | 742 | 80.962 | 150.089 | 44.45 | 46.672 | 36.512 | 5 | 3.3 | 3.43 |
749 | 742 | 85.026 | 150.089 | 44.45 | 46.672 | 36.512 | 3.5 | 3.3 | 3.25 |
759 | 752 | 88.9 | 161.925 | 47.625 | 48.26 | 38.1 | 3.5 | 3.3 | 4.09 |
HM218248 | HM218210 | 89.974 | 146.975 | 40 | 40 | 32.5 | 7 | 3.5 | 2.55 |
HM218248E | HM218210E | 89.974 | 146.975 | 40 | 40 | 32.5 | 7 | 3.5 | 2.55 |
HM220149 | HM220110 | 100 | 157 | 42 | 42 | 34 | 8 | 3.5 | 2.82 |
HM518445 | HM518410 | 88.9 | 152.4 | 39.688 | 39.688 | 30.163 | 3.5 | 3.3 | 2.84 |
JM515649 | JM515610 | 80 | 130 | 35 | 34 | 28.5 | 3 | 2.5 | 1.73 |
JM718149A | JM718110 | 90 | 145 | 35 | 34 | 27 | 6 | 2.5 | 2.13 |
