>> BRAKE CAMSHAFT

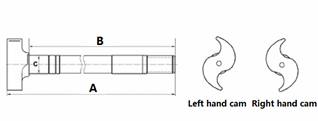

OEM No.	Hand	Drum Diameter	Spline	Dimension AxBxC
05.097.05.17.1	L	420mm & 360 mm	10	588	554	42
05.097.05.18.1	R	420mm & 360 mm	10	588	554	42
05.097.05.21.1	L	420mm & 360 mm	10	628	594	42
05.097.05.22.1	R	420mm & 360 mm	10	628	594	42
05.097.05.23.1	L	420mm & 360 mm	10	641	607	42
05.097.05.24.1	R	420mm & 360 mm	10	641	607	42
05.097.05.25.1	L	420mm & 360 mm	10	666	632	42
05.097.05.26.1	R	420mm & 360 mm	10	666	632	42
05.097.05.27.1	L	420mm & 360 mm	10	696	662	42
05.097.05.28.1	R	420mm & 360 mm	10	696	662	42
05.097.05.29.1	L	420mm & 360 mm	10	734	700	42
05.097.05.30.1	R	420mm & 360 mm	10	734	700	42
05.097.60.41.2	L	300mm	10	723	659	42
05.097.60.42.2	R	300mm	10	723	659	42
21202754	R	420mm	10	570	525.5	42
21202755	L	420mm	10	570	525.5	42
21205406	R	420mm	10	570	525.5	38
21205407	L	420mm	10	570	525.5	38
21205716	R	311mm	10	570	525.5	38
21205717	L	311mm	10	570	525.5	38
21205922	R	420mm	10	464	435	38
21205923	L	420mm	10	464	435	38
21214845	R	420mm	10	660	615	42
21214846	L	420mm	10	660	615	42
21219159	R	420mm	10	655	610	42
21219160	L	420mm	10	655	610	42
21219277	R	420mm	10	673	627	42
21219278	L	420mm	10	673	627	42
21219279	R	420mm	10	634	587.5	42
21219280	L	420mm	10	634	587.5	42
21219311	R	350mm	10	570	525.5	42
21219312	L	350mm	10	570	525.5	42
21219321	R	350mm	10	655	610	42
21219322	L	350mm	10	655	610	42
21219335	R	311mm	10	570	525.5	42
21219336	L	311mm	10	570	525.5	42
21219337	R	311mm	10	655	610	42
21219338	L	311mm	10	655	610	42
21220815	R	311mm	10	620	575.5	42
21220816	L	350mm	10	620	575.5	42
21221070	R	420mm	10	570	525.5	42
21221071	L	420mm	10	570	525.5	42
21221194	R	420mm	10	632	587.5	42
21221195	L	420mm	10	632	587.5	42
21222187	R	420mm	10	655	610	42
21222188	L	420mm	10	655	610	42
21222191	R	420mm	10	681	637	42
21222192	L	420mm	10	681	637	42
21224793	R	420mm	10	570	525.5	42
21224794	L	420mm	10	570	525.5	42
21224795	R	420mm	10	638	587.5	42
21224796	L	420mm	10	638	587.5	42
3.262.0261.01	L	420mm	10	550	505	38
3.262.0262.01	R	420mm	10	550	505	38
3.262.0271.01	L	420mm	10	680	635	38
3.262.0272.01	R	420mm	10	680	635	38
3.262.0283.01	L	420mm	10	705	660	38
