Product range:
d: 30mm ~~ 170mm
D: 62mm ~~ 360mm
B: 20mm ~~ 120mm
·The suffix “K”: taper ratio 1:12 for bearings with tapered bores
·The suffix “K30”: taper ratio 1:30 for bearings with tapered bores
·It is possible to provide an oil groove and holes in the out ring to supply lubricant (with code W33)

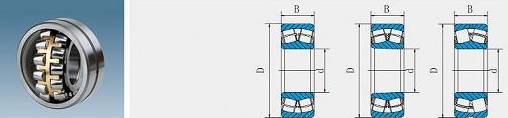

| Bearing No. | Dimension (mm) | Speed ratings (r/min) | Basic load ratings(KN) | Mass/Kg | ||||
|---|---|---|---|---|---|---|---|---|
| BLP | d | D | B / C / T | Grease | Oil | Dynamic | Static | Approx. |
| 22319CA/W33 | 95 | 200 | 67 | 1700 | 2200 | 531 | 705 | 10.30 |
| 22319CAK/W33 | 95 | 200 | 67 | 1700 | 2200 | 531 | 705 | 10.30 |
| 22320 | 100 | 215 | 73 | 1400 | 1800 | 450 | 668 | 13.00 |
| 22320CA | 100 | 215 | 73 | 1400 | 1800 | 617 | 833 | 13.00 |
| 22320K | 100 | 215 | 73 | 1400 | 1800 | 450 | 668 | 13.00 |
| 22320K/W33 | 100 | 215 | 73 | 1400 | 1800 | 450 | 668 | 13.40 |
| 22320CAK | 100 | 215 | 73 | 1400 | 1800 | 617 | 833 | 13.00 |
| 22320/W33 | 100 | 215 | 73 | 1400 | 1800 | 450 | 668 | 13.40 |
| 22320CA/W33 | 100 | 215 | 73 | 1400 | 1800 | 617 | 833 | 13.00 |
| 22320CAK/W33 | 100 | 215 | 73 | 1400 | 1800 | 617 | 833 | 13.00 |
| 22322 | 110 | 240 | 80 | 1200 | 1600 | 545 | 832 | 18.10 |
| 22322CA | 110 | 240 | 80 | 1500 | 1900 | 714 | 968 | 18.10 |
| 22322K | 110 | 240 | 80 | 1200 | 1600 | 545 | 832 | 18.10 |
| 22322K/W33 | 110 | 240 | 80 | 1200 | 1600 | 545 | 832 | 18.00 |
| 22322CAK | 110 | 240 | 80 | 1500 | 1900 | 714 | 968 | 18.10 |
| 22322/W33 | 110 | 240 | 80 | 1200 | 1600 | 545 | 832 | 18.00 |
| 22322CA/W33 | 110 | 240 | 80 | 1500 | 1900 | 714 | 968 | 18.10 |
| 22322CAK/W33 | 110 | 240 | 80 | 1500 | 1900 | 714 | 968 | 18.10 |
| 22324 | 120 | 260 | 86 | 1100 | 1500 | 645 | 992 | 22.00 |
| 22324CA | 120 | 260 | 86 | 1300 | 1700 | 844 | 1157 | 22.00 |
| 22324K | 120 | 260 | 86 | 1100 | 1500 | 645 | 992 | 22.00 |
| 22324K/W33 | 120 | 260 | 86 | 1100 | 1500 | 645 | 992 | 22.00 |
| 22324CAK | 120 | 260 | 86 | 1300 | 1700 | 844 | 1157 | 22.00 |
| 22324/W33 | 120 | 260 | 86 | 1100 | 1500 | 645 | 992 | 22.00 |
| 22324CA/W33 | 120 | 260 | 86 | 1300 | 1700 | 844 | 1157 | 22.00 |
| 22324CAK/W33 | 120 | 260 | 86 | 1300 | 1700 | 844 | 1157 | 22.00 |
| 22326 | 130 | 280 | 93 | 950 | 1300 | 722 | 1140 | 29.00 |
| 22326CA | 130 | 280 | 93 | 1200 | 1600 | 965 | 1341 | 29.00 |
| 22326K | 130 | 280 | 93 | 950 | 1300 | 722 | 1140 | 29.00 |
| 22326K/W33 | 130 | 280 | 93 | 950 | 1300 | 722 | 1140 | 28.50 |
